≡ Membrane evaporimeter
|
>>>>Present
page :Membrane evaporimeter |
|
|
Summary :
The supplies of two kinds of different boiling point
are separated for according to the mixture. In here,
hot separation of products return all on blow mechanical
force , membrane of evaporimeter produce membrane and
rapid to work up high speed 。
After waiting to deal with the supplies and entering
and shaving the membrane evaporimeter , keep in touch
with cloth device that rotor at first, assign tube wall
in getting even , blow by one group diaphragm accelerated
and form in heating surface immediately(0. 5~3. Liquid
film that 5mm ); The fluid blowing the diaphragm front
(II district ) in every group forms a vortex (see Fig.
1), the fluid in the interval is moved rapidly very
high between heating the surface and blade top, resulted
in conducting heat and spreading the quality strongly
, even the high viscidity products produced high hot
transmission coefficient under the circumstances that
this is moved rapidly 。
Shave

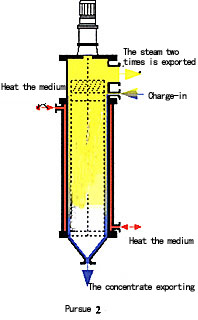

the operation principle of the membrane evaporimeter
vertically : |
|
Led and inserted such parts as a set of vertical
round barrel and rotor heated ,etc. to make up
. Is it deal with supplies is it insert set (2
Fig. ) top enter the evaporimeter to heat lying
in successively to wait, assign it to the inboard
wall of vertical barrel through the cloth device
lying in the feed inlet place , supplies at this
moment blow diaphragm accelerate and form a turbulance
membrane on heating surface immediately, move
forward downwards with the spiral form 。
Among course this, whirling person who blows
membrane guarantee liquid film even and in succession,
prevent the liquid film from heating the surface
to form burntly and forming the dirt . A piece
of material (low boiling point ) is formed the
steam by the evaporation and flowed and rises,
separated the vapour liquid by the vapour liquid
separator in light group; The drop or foam produced
here is smashed and returned to the evaporimeter
cloth mouth; The gas after separating flows into
the top of the evaporimeter and steam two times
to export the associative external condenser or
make a process Recombinate copy (high boiling
point ) along heat surface track flow into evaporimeter
bottom (one one second ) , discharge exporting
with spiral type 。
To special application, steam two times and
liquid film can be obeyed and flowed 。
|
Shave
the operation principle of the membrane evaporimeter
vertical and round and tapered: |

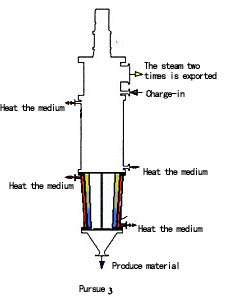

The operation principle of the vertical round
tapered membrane evaporimeter and horizontal round
tapered membrane evaporimeter are similar (Fig.
3) |
|
Shave

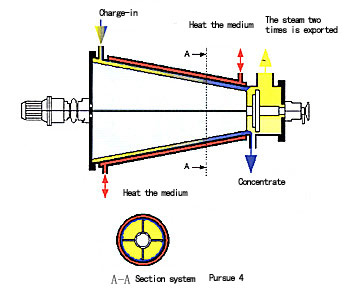

membrane evaporimeter operation principle horizontally:
|
Supplies enter horizontal evaporimeter(4 Fig.) successively
from large diameter end, blow diaphragm accelerate and
distributed and formed an ungenerous flow membrane in
heating the surface immediately 。
Round tapered membrane evaporimeter , depend on the
rotor and construct a centrifugal force in the supplies
, this centrifugal force has two validities, one is
perpendicular to heating the surface, another one is
in the direction of body of large diameter end (notice:
The same result appears in the vertical round tapered
membrane evaporimeter too) rely on the strength to produce
the supplies to accelerate, guarantee it it heats that
surface is abundant and moist supplies on it and enter,depend
on not evaporating than or charge-in speed. So, some
supplies are degraded and is reduced overheatedly and
hotly or totally dispel 。
Among being at course,group copy (thing not boiling
not low ) not light the suitable to flow (and liquid
film with to) wear there aren't membrane evaporimeter
not horizontal, separated drop and foam produced to
smash and enter the liquid phase by the vapour liquid
here (the high boiling thing ), entered the external
condenser or made a process by the gas after separating
; Recombinate copy (high boiling thing ) along heat
cliff side climb to light end export discharge 。
|
|
|
|
